Cutting Machine
Leading Manufacturers, Exporters, Wholesaler, Importer and Retailer of Automatic Paper Core Cutting Machine, Automatic Tape Cutting Machine, Double Shaft PVC Tape Cutting Machine and Single Shaft Auto Roll Cutting Machine from Mumbai.
| Business Type | Manufacturer, Exporter, Supplier |
| Certification | CE Certified |
| Warranty | 1 Year |
| Max. Width | 1300mm |
| Paper Core Dia. | 3” or 6” |
| Cutting Width | 10mm – 1200mm |
| Core Thickness | Max. 15mm |
| Power Source | 220V 50HZ 1PHASE |
| Payment Terms | T/T |
| Delivery Time | 60 days |

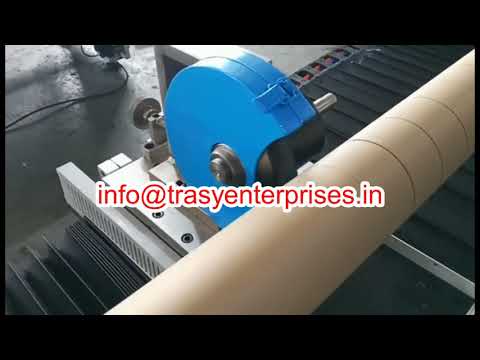

SPECIFICATIONS:
Max. Width : 1300mm
Paper Core Dia. : 3” or 6”
Cutting Width (Min.) 10mm – 1200mm
Core Thickness MAX. 15mm
Power Sorce: 220V 50HZ 1PHASE
Air source 5 KG (PREPARED BY USER)
STANDARD ACCESSORIES
Main Motor: A.C. Motor 2HP
Cutting Shaft 3”or 6”
Shaft Sleeve PE Tube
Width Setting Servo Motor Drive
HMI 5 memory, LCD touch screen
Cutting Stand Ball Screw
Cutting Blade Circular 76 mm (SPARE) Pneumatic Cylinder Control
Dimensions 2450*750*1300 mm
Weight 1000 kgs Gross.
Speed 20 cuts per Min.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Trasy |
| Material | Mild Steel |
| Driven Type | Electric |
| Color | Grey |
| Condition | New |
| Power | 3-6kw |
| Pressure | Medium Pressure |
| Certification | CE Certified |
| Voltage | 440V |
| Packaging Type | Wooden Box |
| Machine Weight | 100-1000kg |
| Phase | Three Phase |
| Warranty | 1 Year |
| Country of Origin | India |
| Operating Mode | Automatic |
| Feed Servo Motor | 1 (KW) |
| Can Be Equipped with a Round Knife | Ø300 |
| Maximum Feed Width | 1.35M |
| Maximum Cutting Diameter | 220mm |
| Minimum Cutting Width | 1mm |
| Positioning Accuracy | ±0.05mm |
| Cutting Shaft Specifications | 3 Inches |
| Dimensions | 2300*1000*1100mm |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 60 days |

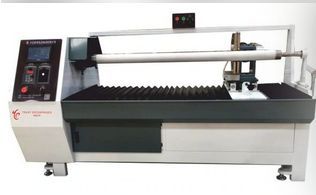

DESCRIPTION:
Tape Slicing machine for masking tape, for BOPP tape, double side tape, kraft tape, cloth tape, foam tape.
Characteristics:
• HMI touch screen
• PLC automation control system
• Feed servo motor: 1 (KW)
• Can be equipped with a round knife: Ø300
• Maximum feed width: 1.35M
• Maximum cutting diameter: 220mm
• Minimum cutting width: 1mm
• Positioning accuracy: ±0.05mm
• Cutting shaft specifications: 3 inches
• Dimensions: 2300*1000*1100mm
• Voltage: 415 (V)
• Weight: 360 (KG)
• Total power: 4.8 (KW)
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | China |
| Usage | Industrial |
| Voltage | 440V |
| Condition | New |
| Power Source | Electric |
| Phase | Three Phase |
| Warranty | 1 Year |
| Effective Width | 1350mm |
| Cutting Width | 3-1300mm |
| Paper Core I. D. | 40mm |
| Max Cutting Diameter | 160mm |
| Power | 415v |
| Payment Terms | T/T |
| Delivery Time | 60 days |

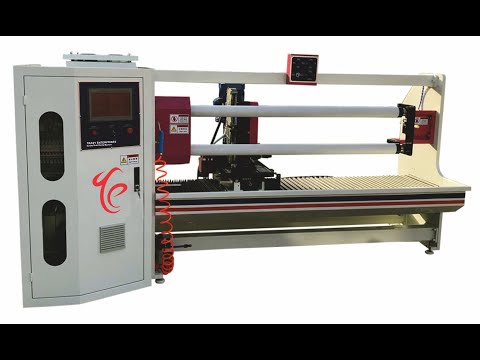

The most cost effective machine is Double Shaft PVC Tape Cutting Machine, in the range of all cutting / slicing machines. The log rolls are generally, in 1300mm length, and core diameter is 40 or 30 mm. The shaft size is week compared to the length of the shaft. It bends with the cutting pressure applied on it while cutting PVC tapes. We provide back up rolls with a moving carriage to the shaft so the shaft does not bend and the PVC tape cutting is of high quality.
This an automatic machine and production capacity is 3 sec for 1 cut, you cut total 40 rolls per min. so we recommend the double shaft PVC Tape Cutting Machine.
The most cost effective machine is Double Shaft PVC Tape Cutting Machine, in the range of all cutting / slicing machines. The log rolls are generally, in 1300mm length, and core diameter is 40 or 30 mm. The shaft size is week compared to the length of the shaft. It bends with the cutting pressure applied on it while cutting PVC tapes. We provide back up rolls with a moving carriage to the shaft so the shaft does not bend and the PVC tape cutting is of high quality.
This an automatic machine and production capacity is 3 sec for 1 cut, you cut total 40 rolls per min. so we recommend the double shaft PVC Tape Cutting Machine.
| Business Type | Manufacturer, Exporter, Supplier |
| Usage | Industrial |
| Phase | Single Phase |
| Cutting Width | 1.3m-1.6m |
| Min. Cutting Width | 1 Mm |
| Max. Cutting O.d | 400mm |
| Cutting Core O.d | 1 |
| Cutting Precision | ±0.1mm |
Features :
- Main driving part: Taiwan AC motor with inverter is employed.
- Central control unit: programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.
- Operating panel: all functions are operated on the 10.4" Taiwan EVIEW LCD touch panel.
- Motor control system: the central control system is PLC programmable controller.
- Cutting positioning system: cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
- Blade feeding positioning system: blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.
- Auto angle adjustment of circular blade: Mitsubishi servo motor is used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).
- Quick shaft change system: three kinds of shafts are available and quick change of shafts is applied for different materials.
