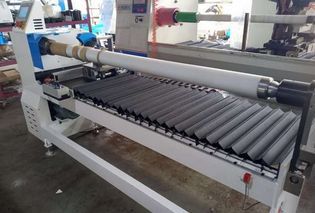

Automatic Paper Core Cutting Machine

Link Copied

5.10 Lac / Set

Edit

Business Type	Manufacturer, Exporter, Supplier
Certification	CE Certified
Warranty	1 Year
Max. Width	1300mm
Click to view more

Product Details

Paper Core Dia.

3” or 6”

Cutting Width

10mm – 1200mm

Core Thickness

Max. 15mm

Power Source

220V 50HZ 1PHASE

Payment Terms

T/T

Delivery Time

60 days

SPECIFICATIONS:

Max. Width : 1300mm

Paper Core Dia. : 3” or 6”

Cutting Width (Min.) 10mm – 1200mm

Core Thickness MAX. 15mm

Power Sorce: 220V 50HZ 1PHASE

Air source 5 KG (PREPARED BY USER)

STANDARD ACCESSORIES

Main Motor: A.C. Motor 2HP

Cutting Shaft 3”or 6”

Shaft Sleeve PE Tube

Width Setting Servo Motor Drive

HMI 5 memory, LCD touch screen

Cutting Stand Ball Screw

Cutting Blade Circular 76 mm (SPARE) Pneumatic Cylinder Control

Dimensions 2450*750*1300 mm

Weight 1000 kgs Gross.

Speed 20 cuts per Min.
