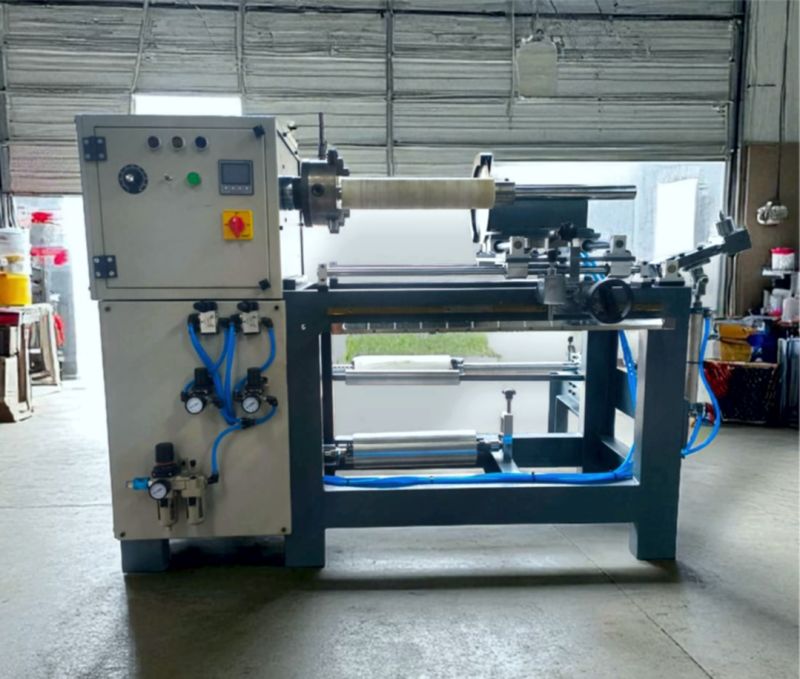

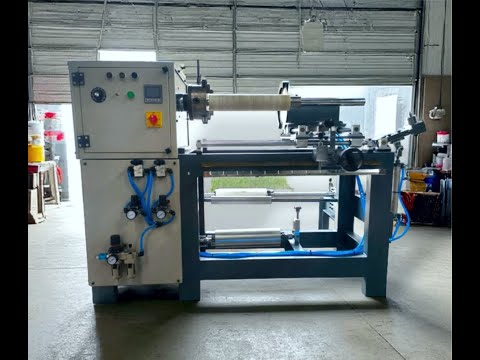

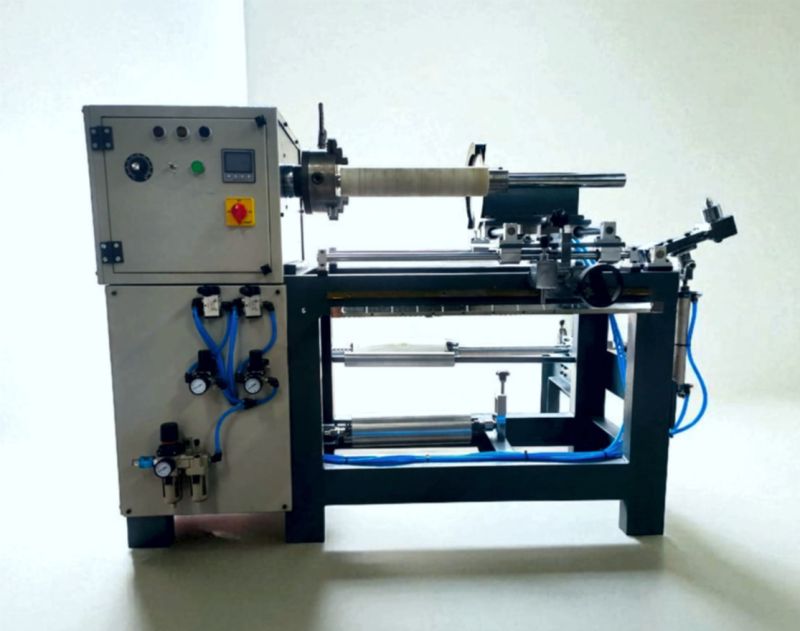

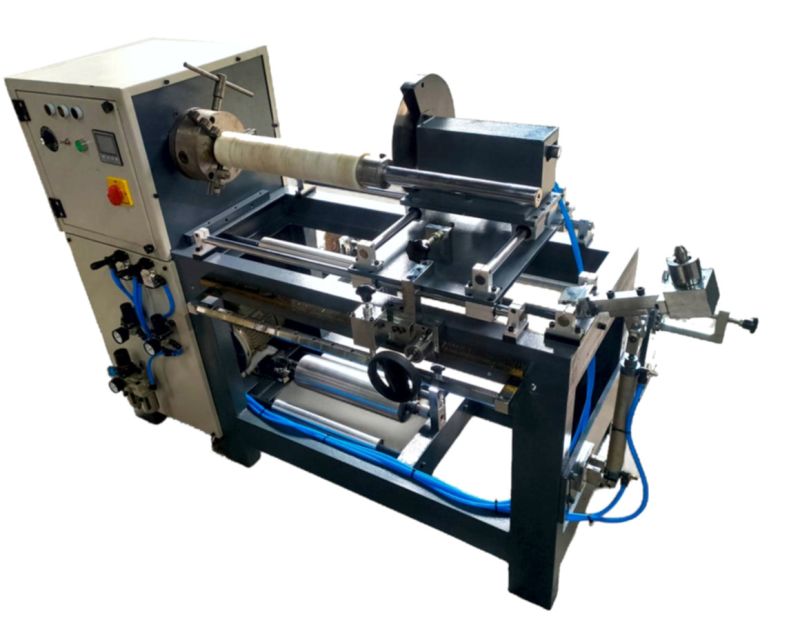

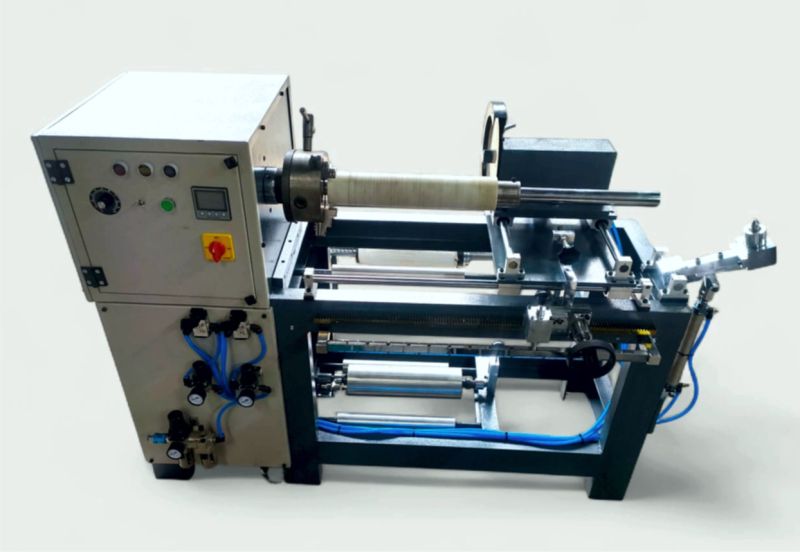

Rewind and Semi-Automatic Slicing Machine for HDPE Fabric Tape with Liner

The Rewind and Semi-Automatic Slicing Machine from Trasy Enterprises is purpose-built for precise cutting and rewinding of adhesive tapes, protective films, fabrics, nonwoven materials, and other roll-stock substrates. Designed for reliability and ease of use, it ensures smooth cutting surfaces with high efficiency, making it an ideal solution for manufacturers seeking consistent quality with minimal maintenance.

1. User-Friendly Operation – Simple, manual cutting system ensures ease of use with high cutting efficiency.

2. Powder Brake for Unwinding – Provides stable tension control for smooth operation.

3. Circular Blade with Pneumatic Feeding – Guarantees clean, smooth, and accurate cuts.

4. Cutting Width Gauge – Enables quick and stable positioning for precise cutting widths.

5. Compact & Low-Maintenance Design – Small footprint with simple maintenance, offering both economy and efficiency.

• Effective Width: 310 mm

• Maximum Unwinding Diameter: 550 mm

• Maximum Cutting Diameter: 180 mm

• Cutting Width Range: 25 – 300 mm

• Core Inner Diameter: 3’’

• Motor Power: 1 HP

• Total Power Consumption: 1.5 kW
