Label Machine
Leading Manufacturers, Exporters, Wholesaler, Importer and Retailer of Label Die Cutting Machine, label punching machine, label slitting machine, PVC Label Cutting Machine and PVC Label Gluing Machine from Mumbai.
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Condition | New |
| Power | 3-5kw |
| Application | Label Punching |
| Certification | CE Certified, ISI Certified |
| Voltage | 440V |
| Type | Label Punching Machine, Automatic |
| Weight | 1000-2000kg |
| Country of Origin | China |
| Warrenty | 1 Year |
| Payment Terms | T/T |
The machine adopts accurate flatten die-cutting system, material towing controlled by servo motor, web-guiding by three photoelectric eyes. Die cutting, waste rewinding and finished-material rewinding are finished in one process. It is suitable for die cutting of adhesive paper, Dacron label and laser hologram mark, This is the ideal association equipment for the flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and it’s the most efficient machine for printing house.
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Power | 3-5kw |
| Certification | CE Certified |
| Voltage | 380V |
| Type | Label Making Machine, Automatic |
| Weight | 100-500kg |
| Warrenty | 1 Year |
| Port | Mumbai |
| Delivery Time | 60 days |
The machine adopts accurate flatten die-cutting system, material towing controlled by servo motor, web-guiding by three photoelectric eyes. Die cutting, waste rewinding and finished-material rewinding are finished in one process. It is suitable for die cutting of adhesive paper, Dacron label and laser hologram mark, This is the ideal association equipment for the flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and it’s the most efficient machine for printing house.Fully automatic 4-shaft turret type non-stop rewinding machine, the rate of achieving paper success is up to 100%. And it ensures that the tension stability of equipment in the production stage regardless of jog, speed increase, speed reduction, emergency, to realize the best condition of printing machine.The turret type rewinding machine system adopts the world famous brand Bosch Rexroth, which provides intelligent production solutions. It adopts full servo closed-loop tension control and equips with a vibrating plate automatic paper-feeding tube mechanism, a discharge mechanism, to realize online non-stop rewinding.The rewinder can be connected to rotary die cutting, slitting machines, flexographic printing machines and other equipment. It is equipped with a 1-inch 1.5-inch 3-inch quick release air-expansion shaft. The rewinding machine does not require manual mechanical adjustment when changing the size of different reels, its system automatically adjusts the size of the reel to reduce the labour force for intelligent production.
| Business Type | Manufacturer, Exporter, Supplier |
| Color | Grey |
| Condition | New |
| Automatic Grade | Automatic |
| Certification | CE Certified |
| Voltage | 440V |
| Type | Automatic |
| Weight | 100-500kg |
| Slitting Speed | 120m/minute |
| Rotary Die Cutting Speed | 60m/minute |
| Rotary Die Cutting Circumference | 177-476mm |
| Max width of material | 320mm |
| Max Unwinding Diameter | 500mm |
| Max Rewinding Diameter | 480mm |
| Overall Dimensions | 1.60(L)×1.3(W)×1.35(H) Meter |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 60 days |
Features:a. This machine is the necessary auxiliary equipment for label making.b. The machine used for narrow width reel material slitting. It added one station of rotary die cutting. The rotary die can be magnetic ornormal solid die, the size can be special made as per request.c. Automatic meter counting and number counting.d. Photocell tracking in unwinding unit.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Trasy |
| Finishing | Coated |
| Color | White |
| Condition | New |
| Automatic Grade | Automatic |
| Power Source | Electric |
| Speciality | High Precision Cutting |
| Usage | Industrial |
| Certification | CE Certified |
| Voltage | 220V |
| Cutting Capacity | 300mm |
| Overall Length | 40-50 Inch |
| Machine Weight | 200-300kg |
| Phase | Single Phase |
| Warranty | 1 Year |
| Air Consumption | 20 Lit / Min At 2 Bar |
| Country of Origin | India |
| Effective Cutting Width | 1mm, 10mm |
| Max Cutting Thickness | 0.5 Mm |
| Max Cutting Speed | Max. 300/min |
| Maximum Label Size | 300 mm X 300 mm |
| Max. Speed | 335 PPM depending on size |
| Motor Load | 0.5 Hp |
| Product Code | PC 01 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 60 days |

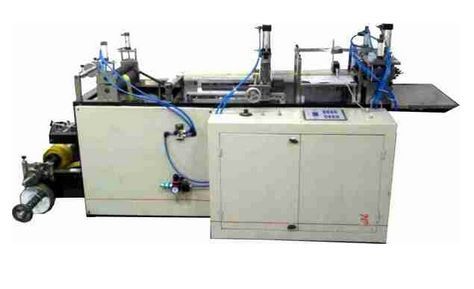

About Our Cut to Length, Point Cutting, Label Cutting Machines: Trasy Enterprises is engaged in supplying and exporting of Cut to Length, Point Cutting and Label Cutting machines. Get highly efficient machines for Label Cutting, Cut to Length and Point Cutting from Trasy Enterprises Plastics at best price. These machines are running successfully all over India which are exported world wide for packing various products. Features : • Unwind with Pneumatic Brakes. • Pneumatic knife for speedy cutting. • Perforation is adjustable by pressure of pneumatic. • Printed & unprinted accurate label making. • Maximum Label Size: 300 mm X 300 mrn • Max. Speed: 335 PPM depending on size • Motor Load: 0.5 Hp
| Business Type | Manufacturer, Exporter, Supplier |
| Driven Type | Electric |
| Color | Grey |
| Condition | New |
| Power | 1-3kw |
| Certification | CE Certified |
| Voltage | 220V |
| Type | Label Making Machine, Automatic |
| Weight | 100-500kg |
| Country of Origin | India |
| Warrenty | 1year |
| Gluing Speed | 60 to 80m/min. |
| Thickness of Pvc | 12 to 150 Micron |
| Max. Unwind Size | 600 mm |
| Max. Rewind Dia. | 450 mm |
| Product Code | GL 5 |
| Port | Mumbai |
| Payment Terms | T/T |
| Delivery Time | 60 days |

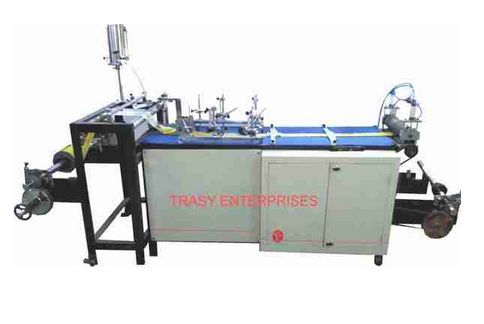

This machine was developed in India by TRASY in 1996 It was then displayed in PLASTINDIA exhibition. This is used for converting reverse printed PVC sheet into PVC label sleeve. It uses cold adhesive available locally.The latest development in this machine is to coat a hot melt on printed side of heat shrinkable PVC, to restrict label from rotation on the container.Features ::• EASY START STOP ACTION.• AUTO GLUE FILLING SYSTEM.• CONTROLLED TENSION WINDING.• CONTROLLED DISPENSING OF GLUE.GLUING SPEED : 60 to 80m/min.THICKNESS OF PVC: 12 to 150 micron.MAX. UNWIND SIZE: 600 mmMAX. REWIND DIA. : 450 mm
