Slicing Machine

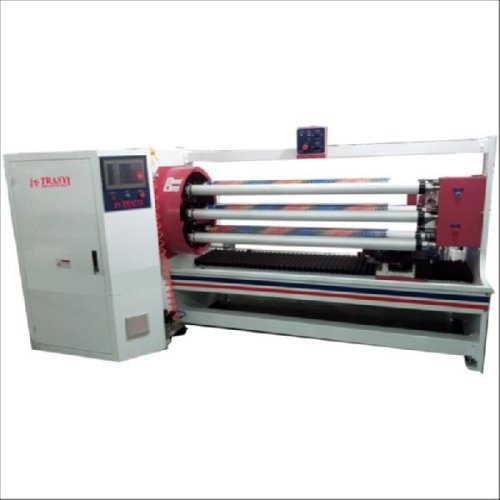

This machine has six shafts log roll tape slice cutting machine. It has a turret exchange system, suitable for high-speed slice cutting log rolls of BOPP packing tape, PVC Insulation tape, Masking tape, Double-sided tape, Duct tape, Aluminium foil tape, etc.

This machine can cut the Max-width of 1300mm, Maximum diameter of the roll can be 140mm. The smallest possible width of cutting is 2mm. The Cutting Speed of the machine is about 35cuts/min. The cutting position accuracy is 50 microns. The inner diameter of the paper tube is 76mm. This is a very cost-effective high production machine.

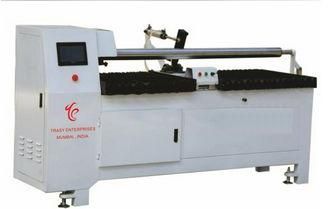

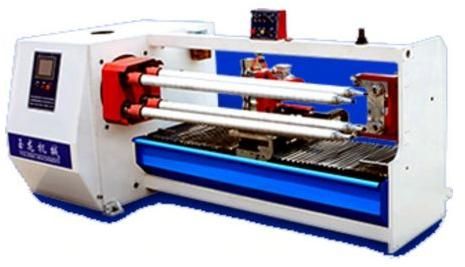

This machine is mainly designed for the foam tapes.Characteristics:• LCD touch screen• PLC automation control system• Can be assembled with straight knife: 190×20×0.9mm• Maximum feed width: 1.35M• Maximum cutting diameter: 85-350mm• Minimum cutting width: 5mm• Positioning accuracy: ±0.05mm• Cutting shaft specifications: 3 inches• Dimensions: 2200*1000*1100mm• Voltage: 415 (V)• Weight: 300 (KG)• Total power: 2.2 (KW)

Features :

• Main driving part: Taiwan AC motor with inverter is employed.
• Central control unit: Programmable central control is used and 20 sizes can be set on the same shaft for auto transfer and cutting.
• Operating panel: All functions are operated on the 10" LCD touch panel.
• Motor control system: The central control system is PLC programmable controller.
• Cutting positioning system: Cutting positioning is controlled by Mitsubishi servo motor. The imported high precision ball screw is applied to set the size and the linear slide rail is to bear the load of the cutter seat.
• Blade feeding positioning system: Blade feeding is controlled by Mitsubishi servo motor, and the cutting speed is adjustable in three stages.
• Auto angle adjustment of circular blade: Mitsubishi servo motoris used to calculate the circular blade angle and the angle change is subject to different materials (the angle change range is ±8°).
• Auto exchange device: cylinder-driven position spline gear is used to ensure fast & precise exchange; non-stop machine to save material loading & unloading time and improve efficiency.
• Quick shaft change system: Three kinds of shafts are available and quick change of shafts is applied for different materials.

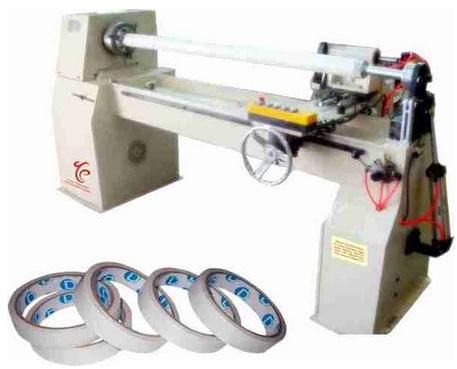

The Rewind and Semi-Automatic Slicing Machine from Trasy Enterprises is purpose-built for precise cutting and rewinding of adhesive tapes, protective films, fabrics, nonwoven materials, and other roll-stock substrates. Designed for reliability and ease of use, it ensures smooth cutting surfaces with high efficiency, making it an ideal solution for manufacturers seeking consistent quality with minimal maintenance.

1. User-Friendly Operation – Simple, manual cutting system ensures ease of use with high cutting efficiency.

2. Powder Brake for Unwinding – Provides stable tension control for smooth operation.

3. Circular Blade with Pneumatic Feeding – Guarantees clean, smooth, and accurate cuts.

4. Cutting Width Gauge – Enables quick and stable positioning for precise cutting widths.

5. Compact & Low-Maintenance Design – Small footprint with simple maintenance, offering both economy and efficiency.

• Effective Width: 310 mm

• Maximum Unwinding Diameter: 550 mm

• Maximum Cutting Diameter: 180 mm

• Cutting Width Range: 25 – 300 mm

• Core Inner Diameter: 3’’

• Motor Power: 1 HP

• Total Power Consumption: 1.5 kW

It is used for the adhesive tape, protective film, fabric, non woven, so on roll stock materials.

Feature:

1. With full-manual cutting and simple operation, it has great cutting efficiency.

2. Circular blade cutting and pneumatic blade feeding are employed to ensure smooth cutting surface.

3. Its equipped with cutting width gauge for quick and stable positioning.

4. With small volume and simple maintenance, it's economical and efficient.

Main Technical Parameters:

effective width 1300mm, 1600mm

max. cutting diameter 150mm other size as the customer request.we can made.

cutting width 3-1600mm

I.D. of paper core 3",6''

We welcome the OEM service, we can make the nonstandard machine according to our customer different material and different size. Example: change the diameter of the knife, change the width, and also for this machine, we also can make the semi automatic type for the servo motor control.
