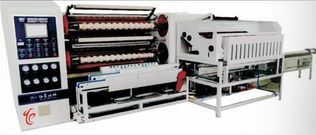

Fully Automatic Tape Slitting Machine

Link Copied

33 Lac - 99 Lac / Set

Edit

Business Type	Manufacturer, Exporter, Supplier
Power	10 Kw
Working Width	1300mm
Machine Speed	0-250 Meter/min
Click to view more

Product Details

Unwind Diameter

Max. 700mm O.D.

Rewind Diameter

Max. 140mm O.D.

Paper Core Diameter

3” (76mm)

Slitting Width

Min. 48mm

Blade

0.2X22X66 mm

Payment Terms

T/T

Delivery Time

60 days

4 Shaft rewinding turret with 2 shafts rotating and 2 shafts stationery.

Touch screen control panel and PLC to control, high speed with accuracy.

Unwind & Rewind tension controlled by brake and slip clutch automatically.

Application : For slitting/rewinding BOPP adhesive tapes

Working Width : 1300mm 1600mm

Machine Speed : 0-250 Meter/min

Unwind Diameter : Max. 700mm O.D.

Rewind Diameter : Max. 140mm O.D.

Paper Core Diameter : 3” (76mm)

Slitting Width : Min. 48mm

Blade : 0.2X22X66 mm

Power: 10 Kw
