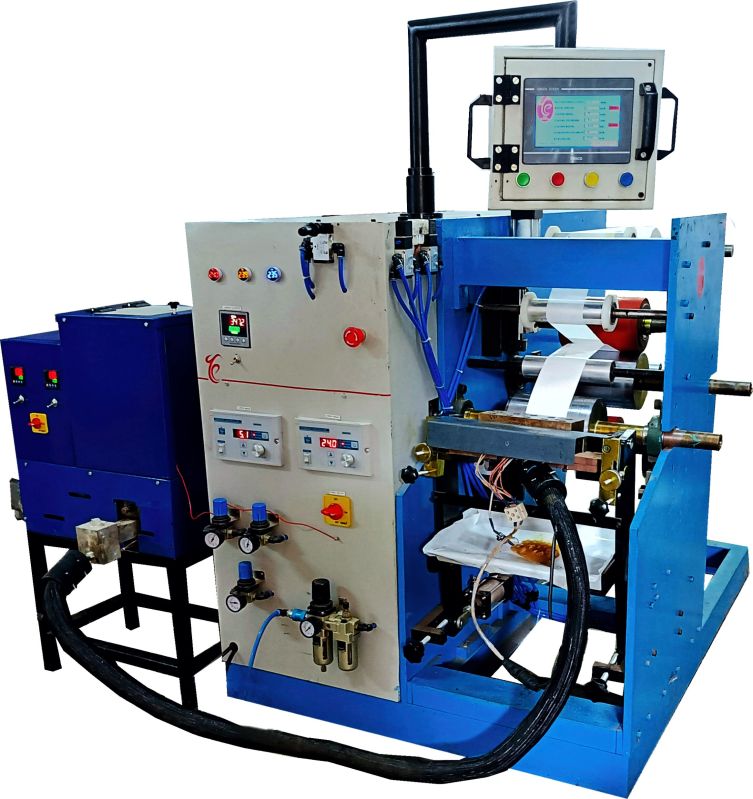

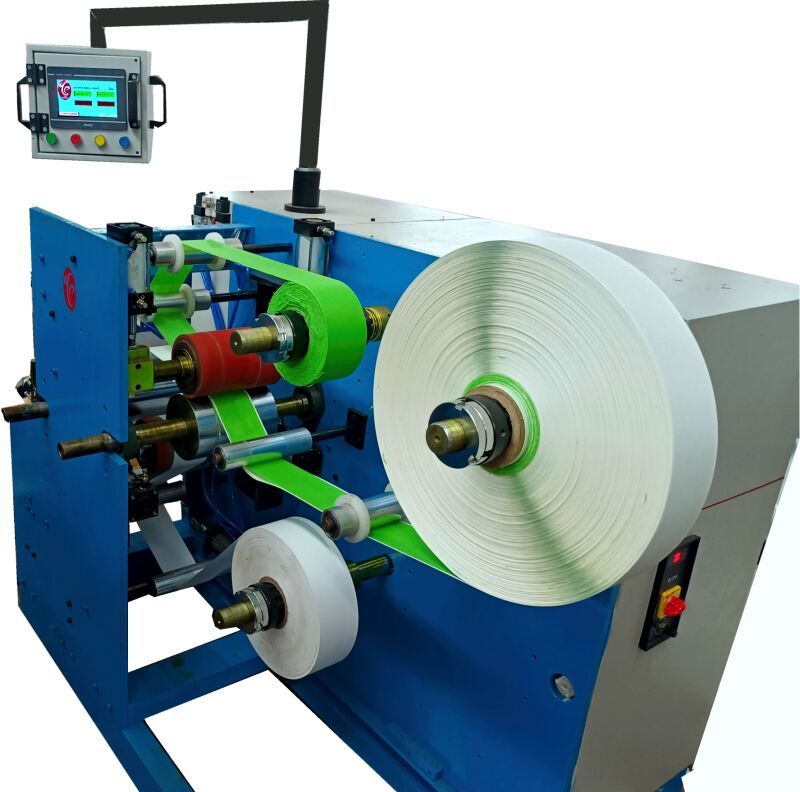

Hot Melt Coating Machine HMC6 TS

Hot Melt Coater Specification: Model HMC 6

Machine Type: Die Coating

Max. Size of coating : 150mm, GSM: 20 to 80, Max.

Speed of coating : Speed 15 mpm. Till 40mm tape you can run at 15 mpm. @ 40 GSM.

Bigger sizes or Higher GSM will be proportionally less speed. Eg. 100 mm will run at 10 mpm.

Synchronized coating thickness with speed.

Automatic coating with PLC and Touch Screen.

1. Unwind:2 Stations

To hold 150 mm width of

Silicon paper / Tape Cloth rolls.

76 MM core ID.

Powder Brake

2. Coating Station:

Slot Die coating,

Accurate Temp. Control.

All silicon rolls dynamic balanced.

Back up roller Pneumatically operated.

AC Drive for coating roller.

3. Lamination Nip:

Dynamic balanced Metal roll, Silicone roll

Operation & pressure Pneumatic

AC Drive to the nip

4. Rewind:

To hold max. 150 mm width material.

300 mm Dia. Max.

76 MM core ID.

Taper tension-controlled winding.

AC Drive for controlled winding.

5. Permelter:

Tank capacity 5 Lit.

Melting Capacity 5 Lit/hr

Dry tank capacity: 5 Lit.

liquid tank capacity 0.5 Lit.

Pump Capacity 0.5 Lit/Min

Accurate Temp. Control.

6. Hot melt Hose

To Supply 5 Kgs/hr

Length 2 m

Accurate Temp. Control.

DIMENTIONS: 6’X 4’X 4’

Total Electrical Load: Motors 3 HP + Heaters 6 KW
