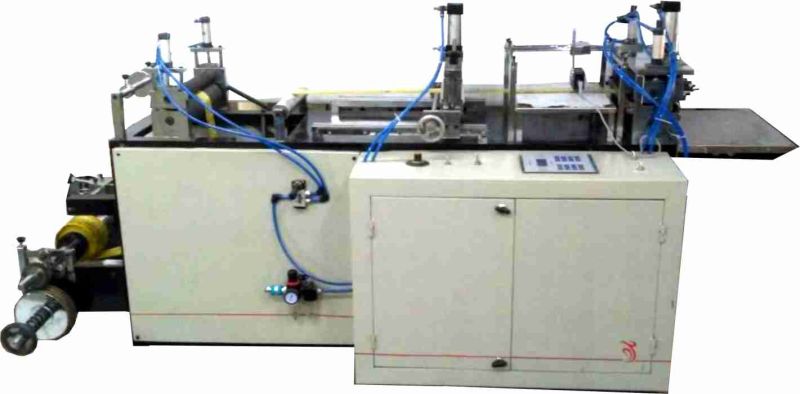

Machine for Making Insect Traps and Wraps with Hot Melt Adhesive

Hot Melt Coater Specification: This machine will make rolls of 300mm (Max.) width & Max 600mm dia. Of 270 micron PVC with hot melt glue and silicon paper. Also can make 100m rolls of 80 micron LDPE coated with hot melt on 3” paper core.

Machine Type: Die coating

Max. Size of coating: 300mm, GSM: 15 to 60 Max. Speed of coating : Speed 0- 15 mpm

M/c specifications:

1. Unwind : (2 Sets)
To hold 310 mm max. width material. 600 mm Dia. Max. 76 MM core ID. Powder Brake Web Guide

2. Coating Station:
Die coating. Accurate Temp. Control. All silicon rolls dynamic balanced. Back up roller Pneumatically operated

3. Lamination Nip:
Dynamic balanced Metal roll & Silicone roll Operation & pressure Pneumatic Drive to the nip

4. Rewind :
To hold 310 mm max. width material. 400 mm Dia. Max. 76 MM core ID. Tapper tension controlled winding. AC Drive for controlled winding. And Turret Winder for LDPE wrap winding.

5. Permelter:
Tank capacity 12 Lit. Melting Capacity 12 Lit/hr liquid tank capacity 6 Lit. Pump Capacity 0.4 Lit/Min Accurate Temp. Control. Accurate flow control

6. Hot melt Hose:
To Supply 0.4 Kgs/hr Length 2 m Accurate Temp. Control.

7. Dimensions:
7 m X 1.5 m X 1.5 m  Total Electrical Load : Motors 6 HP, Heaters 5.1 KW
